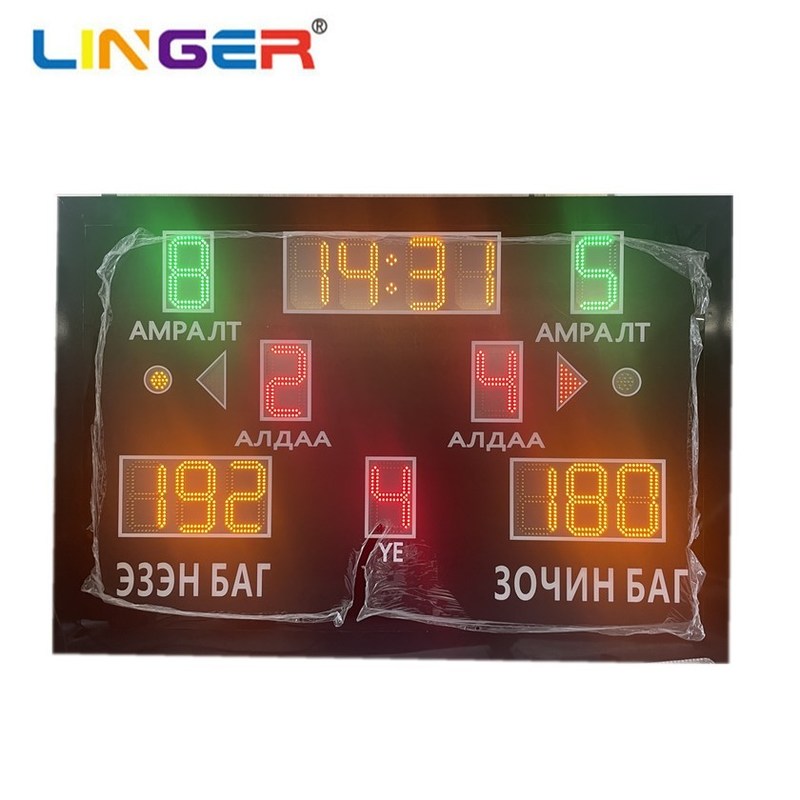

Easy-to-Operate LED Scoreboard for Multiple Sports (Basketball, Soccer, etc.)
Detalhes do produto:
| Lugar de origem: | Jiaxing, Zhejiang, China (continente) |
| Marca: | LG-Linger |
| Certificação: | CE / ROHS |
| Número do modelo: | LG-LBS-15D200RGY |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 unidade |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | 1 unidade em 1 caixa de caixa / madeira |
| Tempo de entrega: | 7 - 10 dias |
| Termos de pagamento: | T/T, Western Union, PayPal |
| Habilidade da fonte: | 100 unidades/ por mês |
|
Informação detalhada |
|||
| Cor LED: | Vermelho / Amarelo / Verde | Tamanho dos dígitos: | 8'' 200mm |
|---|---|---|---|
| Material da estrutura: | Ferro / Aço / Alumínio | Tipo de operação: | Caixa de botões de PVC - Tipo sem fios |
| Dimensão do painel de pontuação: | 1300 mm x 1900 mm x 100 mm | Proteção UV: | Painel de vidro da frente |
| Uso: | Interno e externo | Tensão de entrada: | 110 V ~ 250 V |
Descrição de produto
Introducing the next generation of sports management: an intuitive, high-visibility LED scoreboard designed for seamless operation across all your favorite sports. Whether you're managing a fast-paced basketball game, a strategic soccer match, or switching to volleyball or hockey, this scoreboard eliminates complexity and puts you in full control with effortless ease.
DIGIT SIZE OPTION
| DIGIT SIZE | DIGIT HEIGHT(mm) | DIGIT WIDTH(mm) | LED QTY(pcs) | VOLTAGE |
|---|---|---|---|---|
| 4'' | 124 | 75 | 42 | DC5V |
| 6'' | 161 | 103 | 64 | DC5V |
| 8'' | 201 | 119 | 98 | DC5V/12V |
| 10'' | 254 | 152 | 140 | DC5V/12V |
| 12'' | 304 | 177 | 182 | DC5V/12V |
| 15'' | 381 | 216 | 245 | DC5V/12V |
| 16'' | 412 | 235 | 350 | DC12V |
| 20'' | 500 | 281 | 434 | DC12V |
| 24'' | 600 | 350 | 581 | DC12V |
| 30'' | 750 | 438 | 840 | DC12V |
DATA SHEET
| Feature | Specification |
|---|---|
| Digit Color Option (Single Color) | Red /Green/Yellow/White/Blue |
| Digit Size Option | 4''/6''/8''/10''/12''/13''/15''/16''/20''/24''/30'' |
| Product Option | With Iron Steel Cabinet or Only Component |
| Led Brightness | 4000mcd - 9000mcd |
| Led Life | > 100000 hours |
| Digit PCB | FR4 |
| Digit PCB Thickness | 1.6mm |
| Wireless Controller | Wireless Controller Remote / PC software |
| Communication Option | RF (470mhz / 433mhz) / RS485 |
| Wireless Range | >250meters |
| Brightness Control | 6 Levels |
| Wireless Controller Remote Power | 1.5V AAA Alkaline battery / 9V Battery |
| Front Acrylic Board | Thickness 5mm -9mm |
| Iron Cabinet | Thickness 1.2mm Steel Plate |
| Input Voltage | AC110V ~ AC220V 50/60HZ |
| Digit DC Power | DC5V / DC12V |
| Power Consumption | < 60Watts |
| Painting of Iron Case | Outdoor anti-fading and anti-rust spray paint |
| Operating Temperature | -20°C to +80°C |
| Waterproof | IP67 |
| Warranty | 1-2Years |
FAC
Q1: How customizable is the size and visibility of the numbers on the display?
A: Completely customizable. We understand that visibility is critical. You can specify the exact digit height during ordering to ensure perfect readability for your specific venue, whether it's a compact gymnasium or a large outdoor field. Our high-intensity LEDs guarantee a clear, sharp display from any angle.
Q2: Can the scoreboard's functions be adapted for niche sports or specific league rules?
A: Absolutely. Beyond the standard pre-set sports modes, our scoreboard's functionality is highly adaptable. We can customize the display to show unique metrics, such as personal fouls for basketball, shot clocks, or even a specialized timer for sports like water polo or fencing, ensuring it meets your exact competitive requirements.
Q3: Are there options for customizing the scoreboard's frame to match our team or facility colors?
A: Yes! The scoreboard's exterior frame is available in a wide range of standard colors. For a truly integrated look, we also offer custom color matching to perfectly align with your team's brand or your facility's interior design, making the scoreboard a cohesive part of your visual identity.
Q4: Is it really free to have our team or sponsor logo printed on the scoreboard?
A: Yes, it is. We include professional logo printing on the front panel of the scoreboard at no extra cost. Simply provide us with your high-resolution logo file, and we will ensure it is displayed prominently, adding a professional touch and enhancing brand recognition for your team or sponsors.
Key Features:
-
Unmatched Multi-Sport Versatility: Pre-programmed with dedicated modes for basketball, soccer (football), volleyball, hockey, and more. Switch between sports with a single tap. The display automatically reconfigures to show the most relevant information—from periods and team fouls in basketball to the game clock and half in soccer.
-
Ultra-Simple Control Interface: Control the entire scoreboard from a single, lightweight remote or a dedicated tablet app. The user-friendly interface features large, clearly labeled buttons for clock start/stop, score adjustment, and period advancement. No technical expertise is required—any volunteer or staff member can become an operator in minutes.
-
Crystal-Clear LED Display: Engineered with high-brightness, energy-efficient LEDs, our scoreboard guarantees perfect visibility for players, officials, and spectators alike, even in direct sunlight or under bright indoor arena lights. Every digit is sharp and legible from every angle.
-
Robust and Reliable Design: Built for the rigors of daily use in schools, community centers, and sports clubs, this scoreboard is housed in a durable, weather-resistant casing for outdoor applications, ensuring year-round performance.
Benefits for Your Facility:
-
Save Time and Reduce Errors: The streamlined operation minimizes setup time and eliminates the confusion of managing different scoring systems for different sports.
-
Enhanced Professionalism: A clear, dynamic display elevates the experience for everyone involved, making every game feel official and engaging.
-
Cost-Effective Solution: One versatile scoreboard replaces the need for multiple sport-specific units, offering significant savings and simplified maintenance.
